12 V x 1 A Power Supply (CB24821E)

Details
Written by: Newton C. Braga

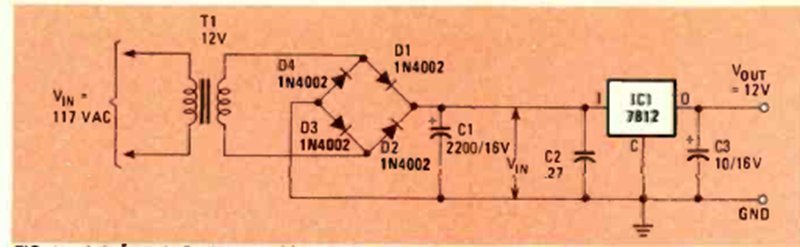

This is one of the many versions we have of a 12 V power supply with the 7812. We found it in the Radio Electronics magazine of July 1984. The integrated circuit must be mounted on a heat sink.
