Eliminator 9 V x 1 A (CB24318E)

Details
Written by: Newton C. Braga

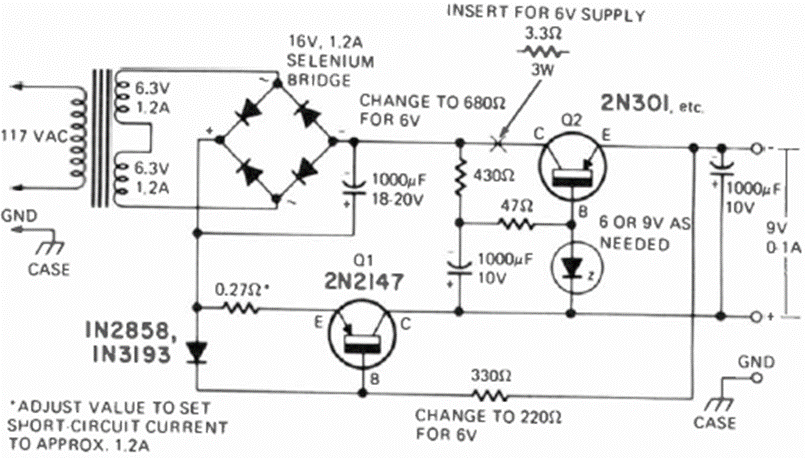

We found this battery eliminator in a Radio Electronics magazine from August 1974. The transistor must be equipped with a heatsink and other voltages can be achieved by replacing the zener.
