NO and NC sensors Alarm (CB24139E)

Details
Written by: Newton C. Braga

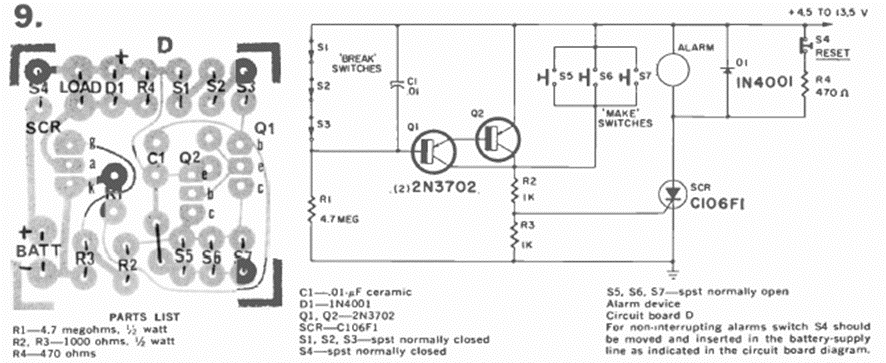

This circuit, with printed circuit board included, is from a Radio Electronics magazine from July 1971. The SCR can be any equivalent of the 106 series.




| Clique na imagem para ampliar |
