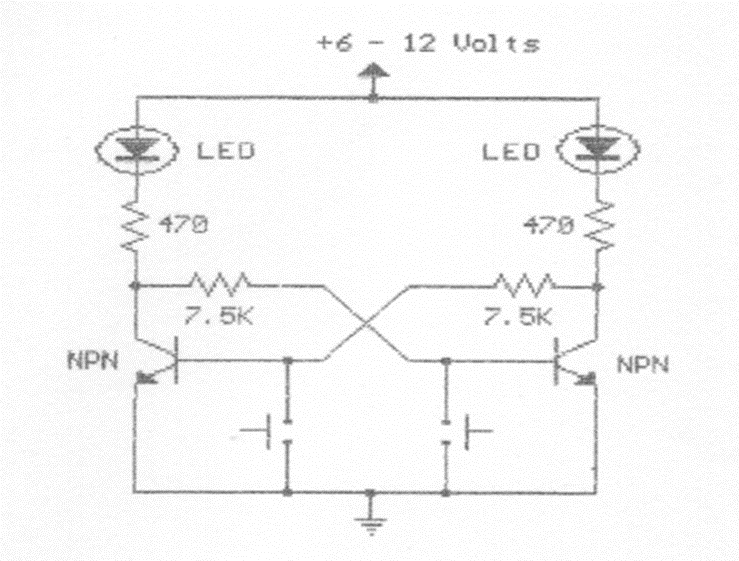

This circuit is from a 90's documentation. The circuit is simple, as it uses only two transistors, and the control is done by pressure switches. The indication is done by LEDs.
| Clique na imagem para ampliar |
Set and reset flip flop (CB24432E)
