Tunnel diode oscillator (CB23702E)

Details
Written by: Newton C. Braga

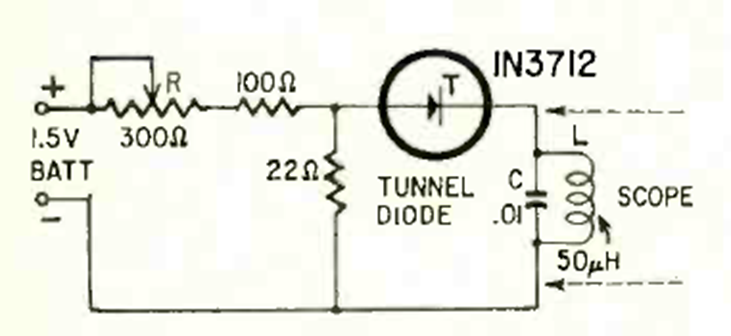

This circuit was found in a Radio Electronics from February 1966. The circuit operates with a common battery and the frequency is given by the resonant LC circuit.
