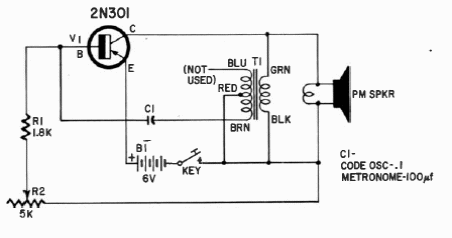

Among other things, this oscillator is suitable for practicing Morse code. The circuit is from a 1966 documentation. The transformer is an output type found in radios of the time.
Multipurpose Oscillator (CB22500E)
- Details
- Written by: Newton C. Braga
