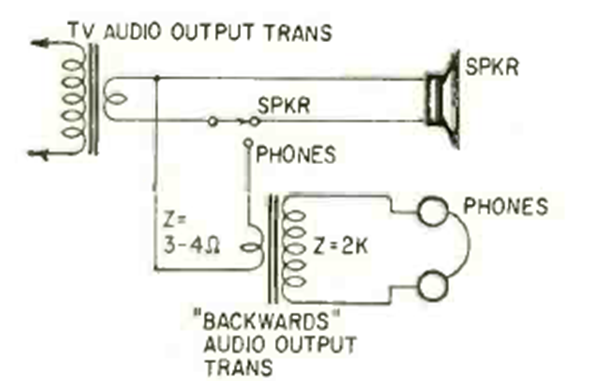

In the figure we see how to connect a high impedance phone to the output of a low impedance amplifier. In this case, volume control was not included. An output transformer is used to match impedances.
High impedance headphone at low output (CB23645E)
- Details
- Written by: Newton C. Braga
