Analog frequency meter (CB23566E)

Details
Written by: Newton C. Braga

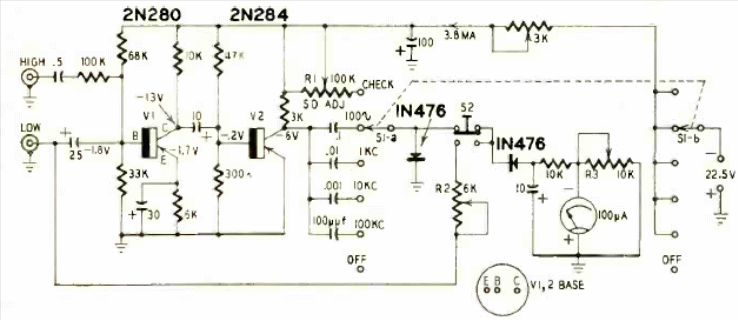

This analog frequency meter for low frequencies was found in Radio Electronics magazine from July 1958. The circuit has several scales with the frequencies indicated in the diagram.
