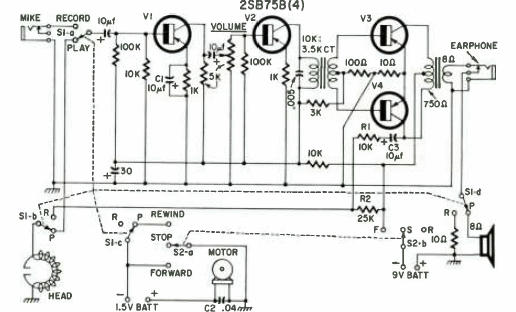

This is an audio amplifier typical of an old tape recorder. The circuit is from a Radio Electronics from November 1952. Note the use of two batteries for power, one for the motor and the other for the amplifier.
Recorder Amplifier (CB22549E)
- Details
- Written by: Newton C. Braga
