Reverse polarity protection 2 (CB22140E)

Details
Written by: Newton C. Braga

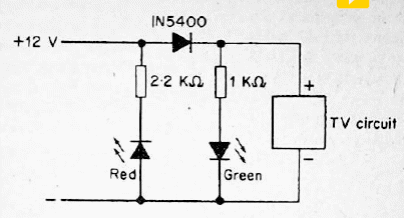

This circuit has an improvement over the previous one as it also has an LED indicator for correct polarity.
