Transformerless Intercom (CB23866E)

Details
Written by: Newton C. Braga

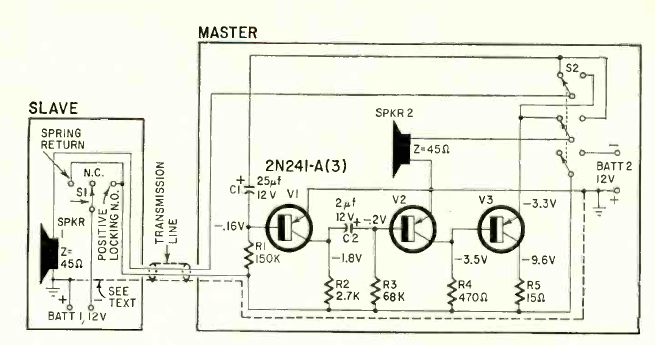

This circuit with three transistors was suggested in a Radio Electronics magazine from February 1963. The transistors are types of the time. Power comes from a 12 V battery.
