Lamp Timer (CB23954E)

Details
Written by: Newton C. Braga

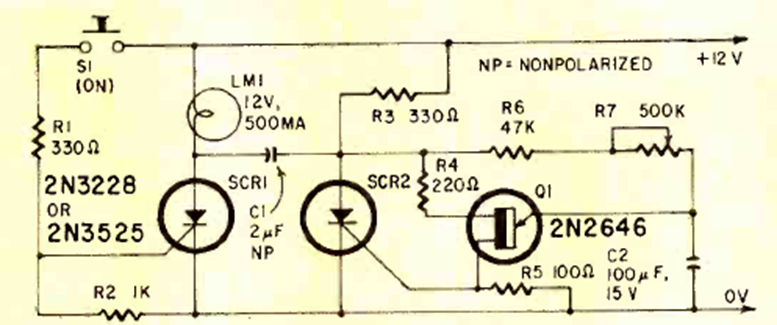

We found this circuit with SCRs and unijunction in a Radio Electronics magazine from June 1969. The SCRs must be in accordance with the controlled incandescent lamp. The circuit is powered by DC.
