Audio Wattmeter (CB23646E)

Details
Written by: Newton C. Braga

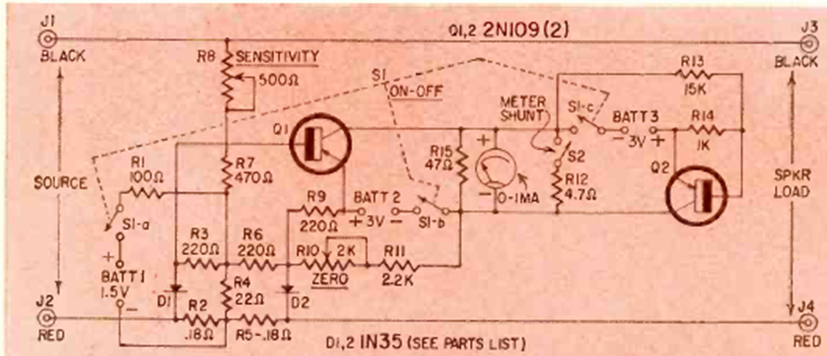

This circuit was obtained from a Radio Electronics in February 1965. The circuit uses two transistors from the time and can be created with modern equivalent transistors.
