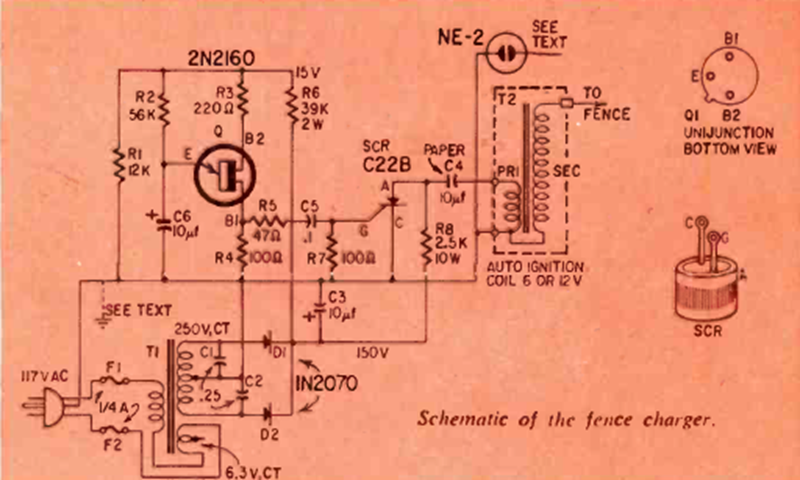

This circuit with SCR and Unijunction and which can be assembled today with modern equivalents was found in a Radio Electronics from July 1965. An article taught how to assemble it. The circuit produces a high voltage with an automotive ignition coil.
| Clique na imagem para ampliar |
