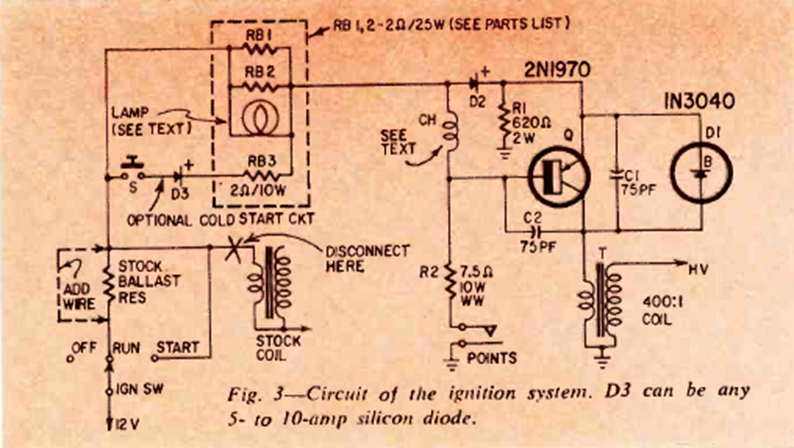

We found this circuit in a Radio Electronics from April 1965. The components are from the time and the power supply is for 12 V cars. The transistor must be equipped with a good heat radiator.
| Clique na imagem para ampliar |
1-Transistor Ignition (CB23647E)
- Details
- Written by: Newton C. Braga
