Speed ​​control (CB23683E)

Details
Written by: Newton C. Braga

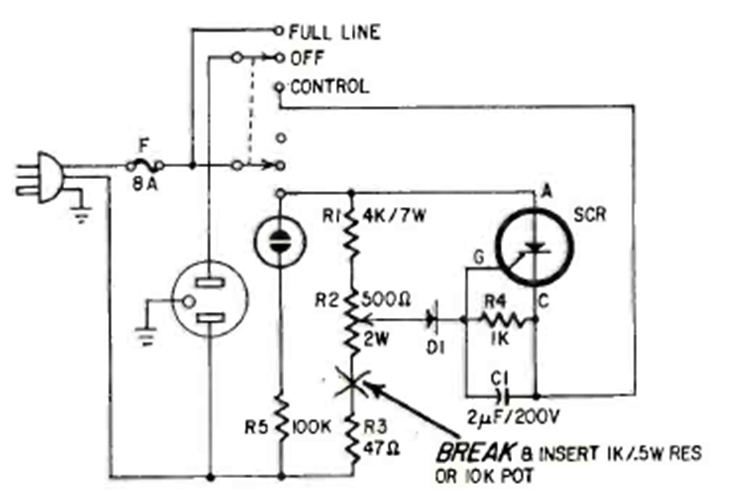

This circuit with SCR is from a Radio Electronics magazine from September 1965. It is a commercial control from Heathkit for controlling universal motors.
