Oscilloscope Preamplifier (CB24000E)

Details
Written by: Newton C. Braga

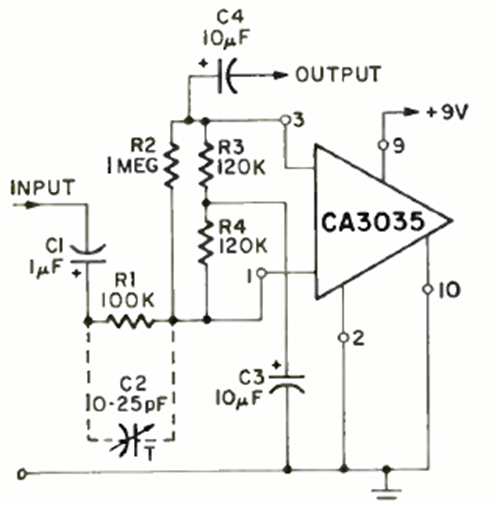

This circuit was found in the February 1970 issue of Radio Electronics magazine. It uses an RCA operational amplifier released at the time. The gain is 10x and the circuit is suitable for low frequency signals.
