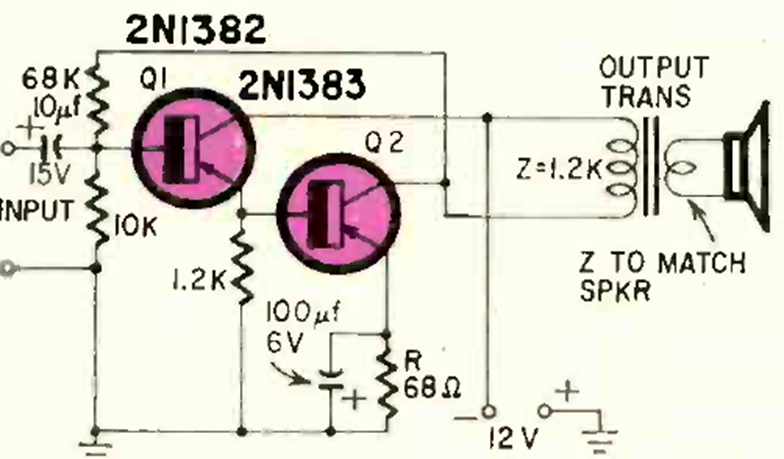

This direct coupled circuit operates in class AB with good gain. The circuit is powered by 12 V. We found it in a Radio Electronics from October 1963.
| Clique na imagem para ampliar |
Two Transistor Audio stage (CB23533E)
