This circuit tunes MW radios to apply the signal to a good audio amplifier. The circuit is from an old documentation. Transistors are general purpose types.
| Clique na imagem para ampliar |

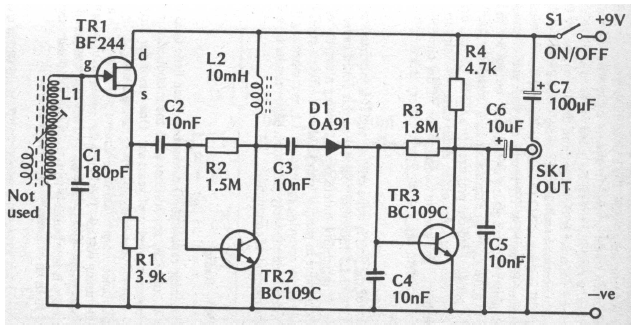

MW tuner (CB22171E)
- Details
- Written by: Newton C. Braga
This circuit tunes MW radios to apply the signal to a good audio amplifier. The circuit is from an old documentation. Transistors are general purpose types.
