Simple 1-transistor oscillator (CB23615E)

Details
Written by: Newton C. Braga

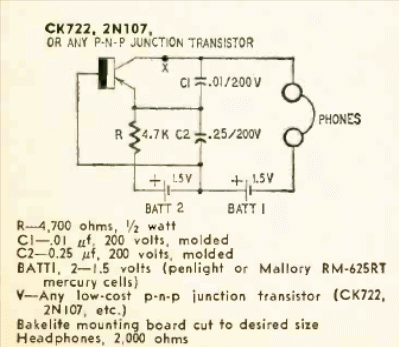

This circuit takes advantage of the inductance of the coil of a high-impedance phone to form the LC circuit that determines the frequency. The circuit is from a Radio Electronics from June 1959.
