CK722 Power stage (CB22519E)

Details
Written by: Newton C. Braga

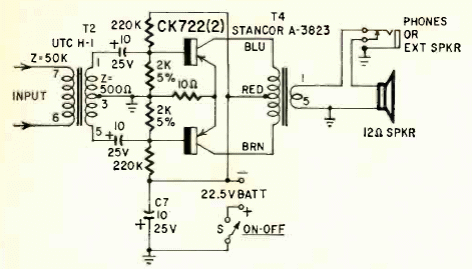

This fraction of a watt power stage was published in Radio Electronics September 1950. Transformers were special types of the day. There was a headphone jack.
