AM transmitter for TV (CB23887E)

Details
Written by: Newton C. Braga

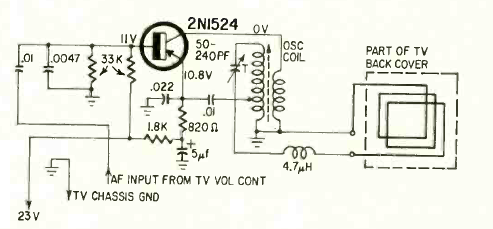

The idea of this circuit is to use an AM radio with headphones to receive sound signals transmitted from a television. So we have a wireless headset. The circuit is from a Radio Electronics from June 1963.
