Remote Control receiver (CB23730E)

Details
Written by: Newton C. Braga

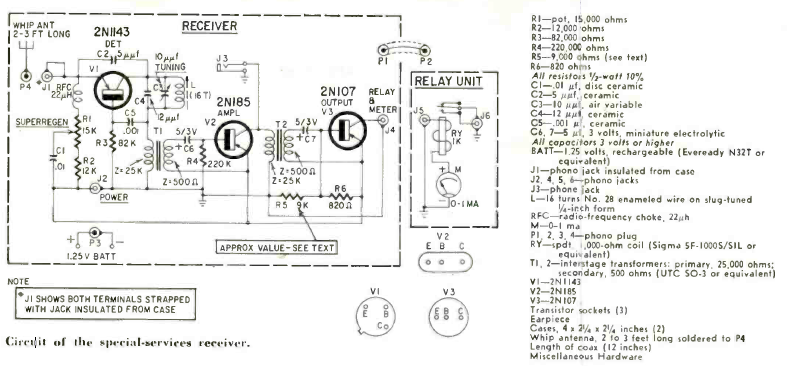

The figure shows a remote-control receiver working the 27 MHz band, very popular in the 60’s. The circuit us from a February 1961 Radio Electronics magazine.
