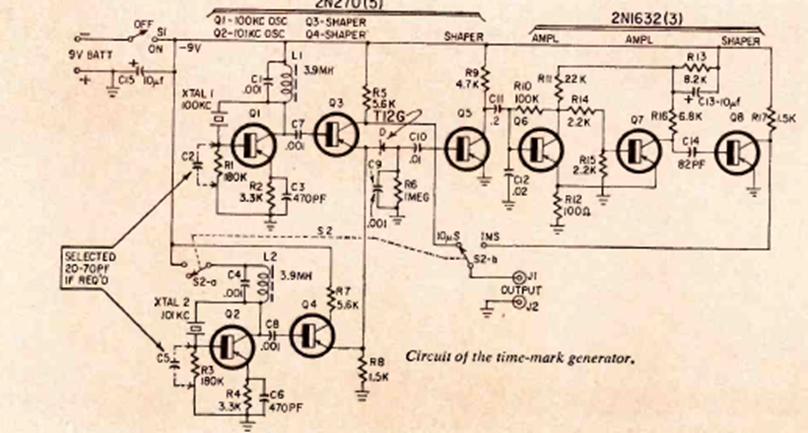

This is an old circuit with a feature that most modern oscilloscopes have. We found it in a Radio Electronics from April 1965. The circuit generates signals of known frequencies to serve as a reference on an oscilloscope.
