Photoelectric relay (CB23606E)

Details
Written by: Newton C. Braga

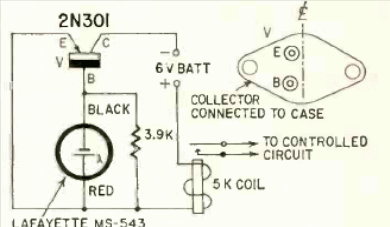

We found this circuit in a Radio Electronics from May 1959. The circuit uses a power relay and a photoelectric cell of the time. There is no sensitivity control.
