Power control (CB23569E)

Details
Written by: Newton C. Braga

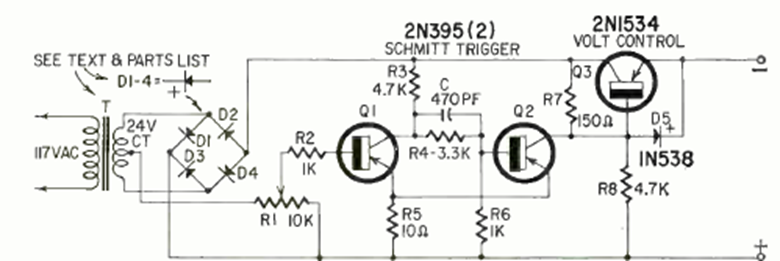

This switching circuit with transistors was found in Radio Electronics magazine from June 1964. It makes use of the 60 Hz signal, and the power transistor must be equipped with a heat sink. It works like a rheostat.
