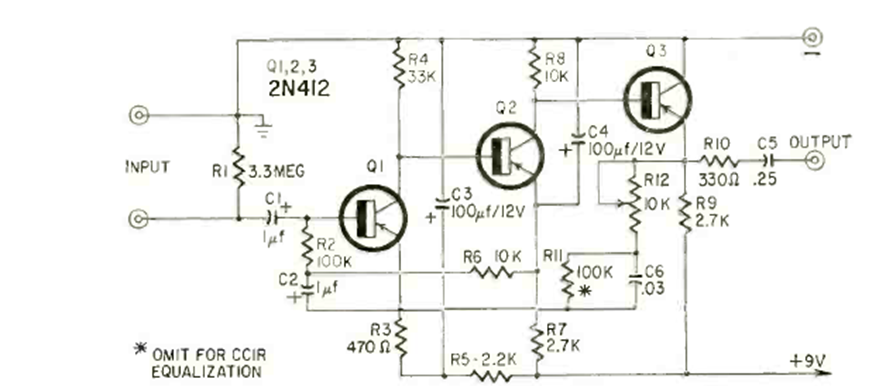

This circuit was found in Radio Electronics magazine from October 1964. The circuit uses two transistors of the time that require a supply voltage of 9 V. Consumption is 2.5 mA.
| Clique na imagem para ampliar |
Universal Preamplifier (CB23615E)
- Details
- Written by: Newton C. Braga
