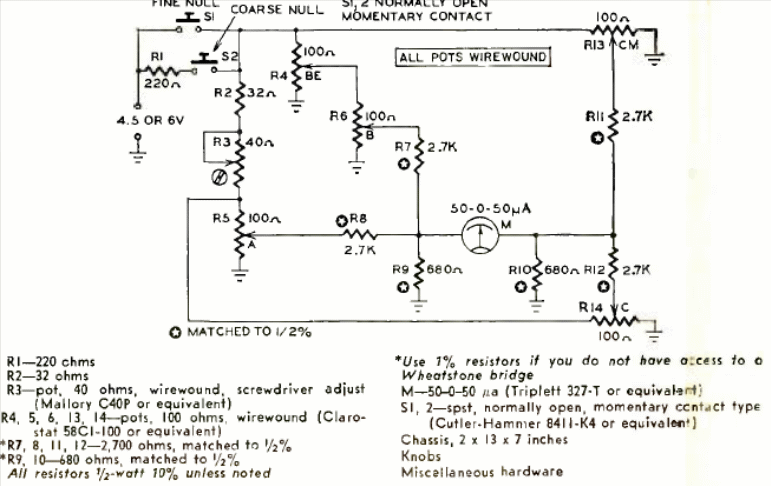

In the figure we have a circuit of an analog computer published in the Radio Electronics magazine of June 1958. Accuracy depends on the components used, mainly the potentiometers.
| Clique na imagem para ampliar |
Analog computer (CB23562E)
- Details
- Written by: Newton C. Braga
