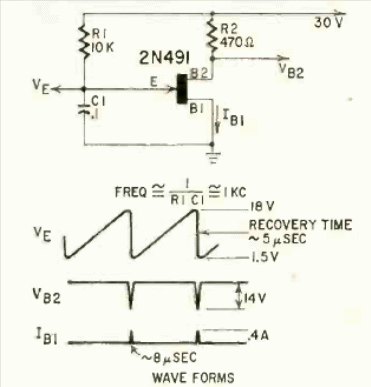

This is an old circuit with a unijunction transistor from that time. We found it in a Radio Electronics from around 1959. The circuit has a frequency determined by C1 and R1.
Unijunction oscillator 2N491 (CB23608E)
- Details
- Written by: Newton C. Braga
