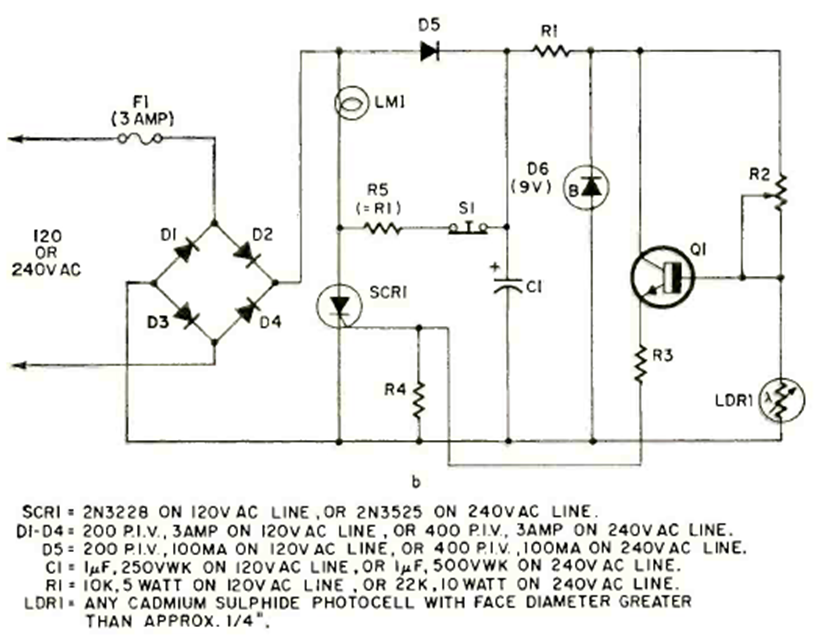

Light-sensitive circuit (CB23962E)

We found this circuit in a Radio Electronics issue from July 1969. The lamp remains on until C1 opens. The time is given by capacitor C1.
