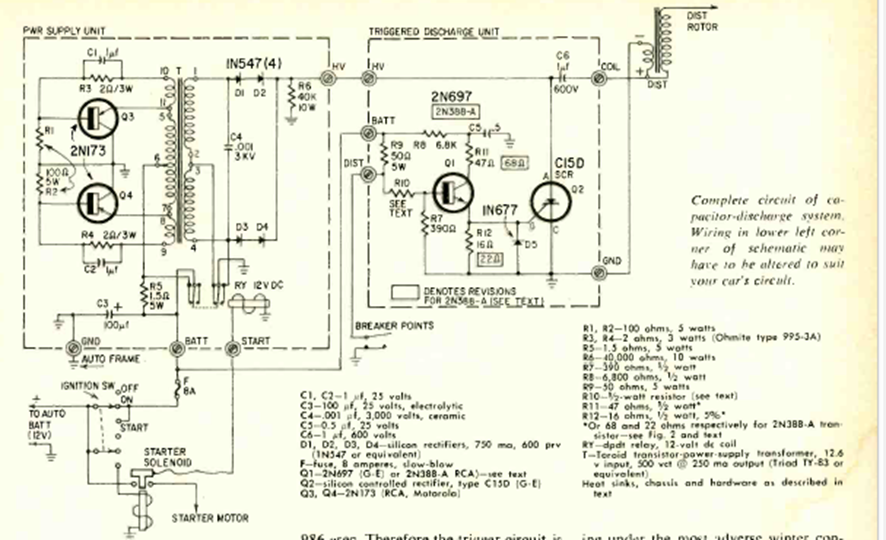

We found this circuit in a Radio Electronics from February 1966. The circuit uses SCR to control an ignition coil containing an inverter to generate the high voltage. This type of configuration has become quite common in this type of ignition since then.
