Photo relay with LDR CIR23521S CB23821E (CB23821E)

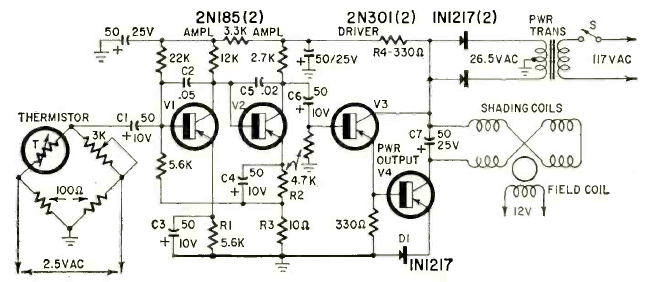

I discovered this circuit in Radio Electronics magazine in 1962. The circuit drives a special control motor. Power comes from the power grid.
