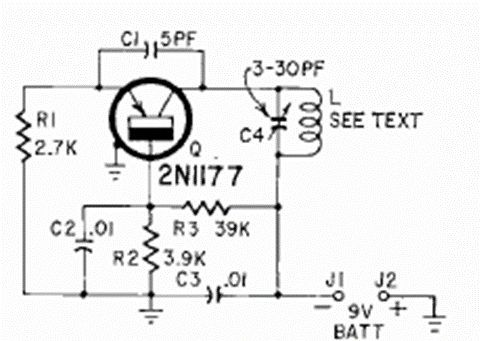

This circuit from a Radio Electronics from March 1964 uses an RF transistor of the time. Can be assembled with the current BF494 or equivalent. The coil consists of 4 turns of wire measuring 22 to 26 with a diameter of 1 cm without a core. It originally plays the signal on the analog television by an intermodulation process.
