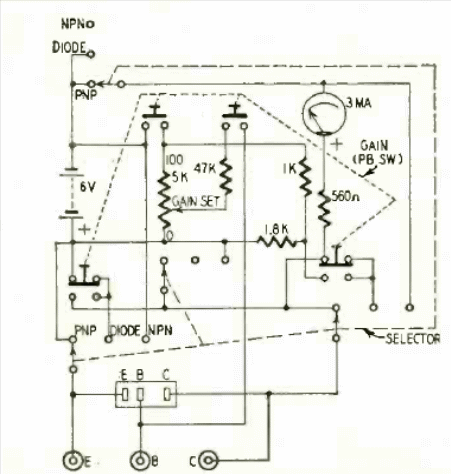

This test, the commercial transistor tester, had its diagram published in an article in Radio Electronics magazine in March 1958. The circuit uses a 3 mA indicator and 6 V battery.
Sencore transistor test (CB22546E)
- Details
- Written by: Newton C. Braga
