Function generator (CB22372E)
- Details
- Written by: Newton C. Braga

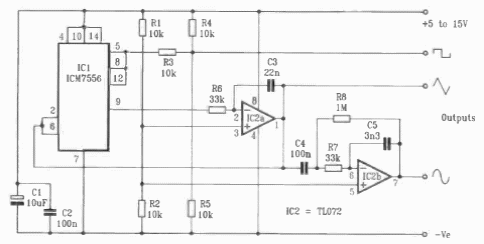

We found this circuit in an old publication. The ICM7556 is a dual CMOS 555. The other components are common. The frequency range depends on the capacitors.
