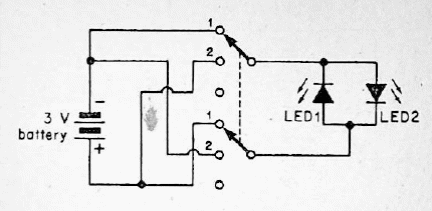

Obtained from an English publication, this circuit actually needs a current limiting resistor, especially if it is supplied with more than 3 V. The resistor in series with the LEDs can have from 220 ohms to 1 k depending on the voltage.
Dual indicator (CB22136E)
- Details
- Written by: Newton C. Braga
