455 kHz Generator with MOSFET (CB23991E)

Details
Written by: Newton C. Braga

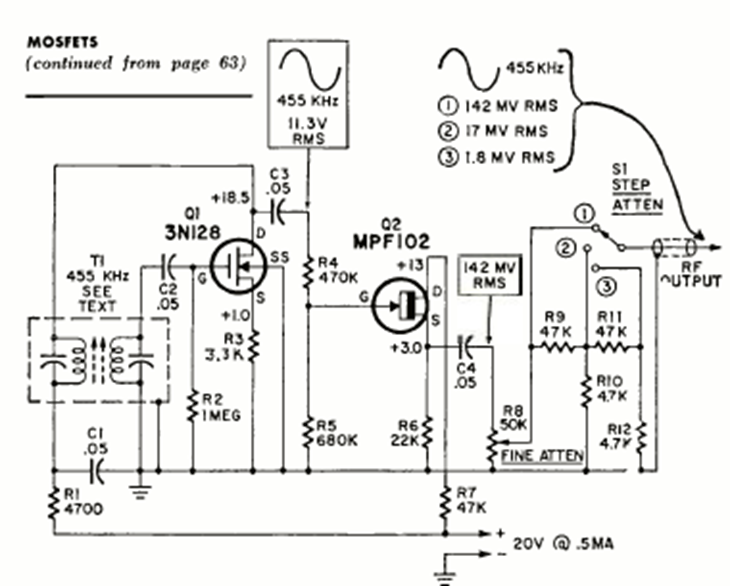

We found this circuit in a Radio Electronics magazine from December 1969. The circuit uses a low-power MOSFET that is not very common today.
