Stereo Compressor (CB23932E)

Details
Written by: Newton C. Braga

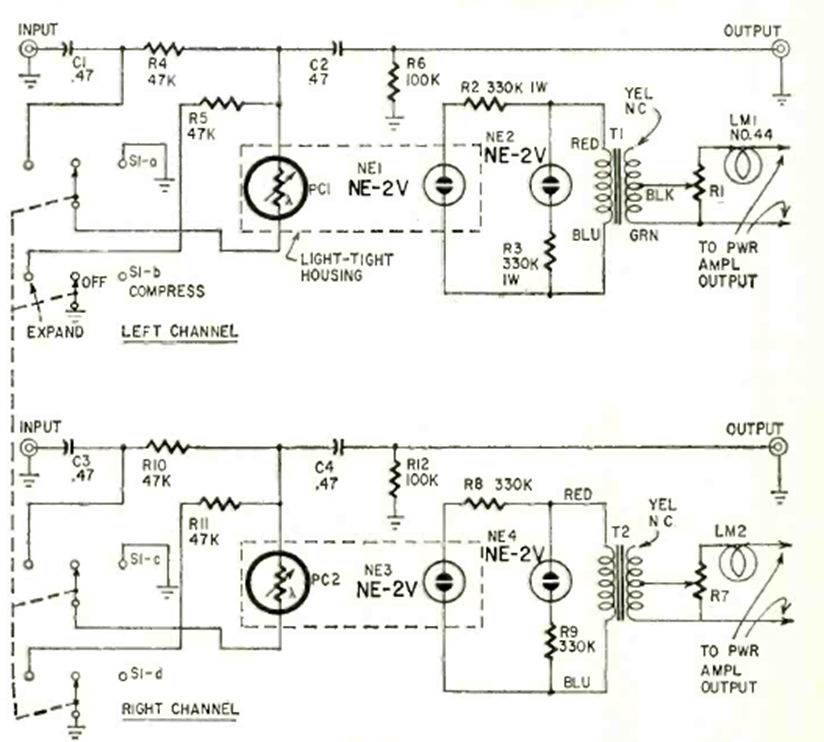

This circuit consists of a stereo audio compressor. We found it in Radio Electronics magazine from October 1968. The circuit uses an opto-coupler made with a neon lamp and LDR.




| Clique na imagem para ampliar |
