Switch for Oscilloscope (CB22575E)

Details
Written by: Newton C. Braga

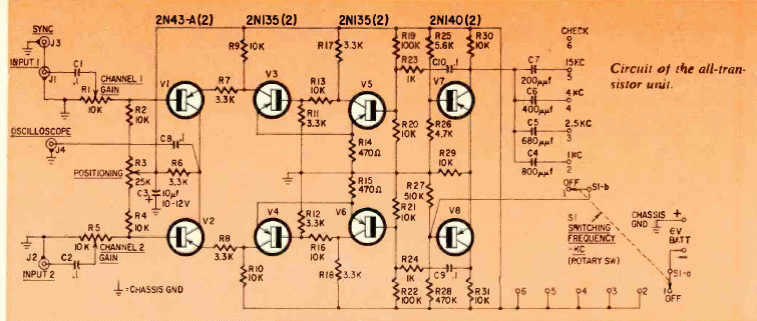

This circuit from a June 1957 Radio Electgronics is for oscilloscopes of the time with a maximum frequency of a few megahertz. The circuit is battery powered.
