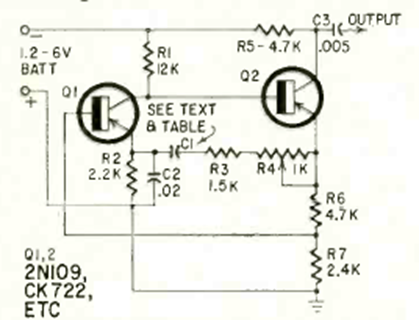

This well-known two-transistor oscillator circuit was found in the April 1964 Radio Electronics magazine. The transistors are from the period, such as the CK722 and 2N109, but modern types can be used without many changes to the other components.
RC Sine Oscillator (CB23556E)
- Details
- Written by: Newton C. Braga
