Stable voltmeter (CB23664E)

Details
Written by: Newton C. Braga

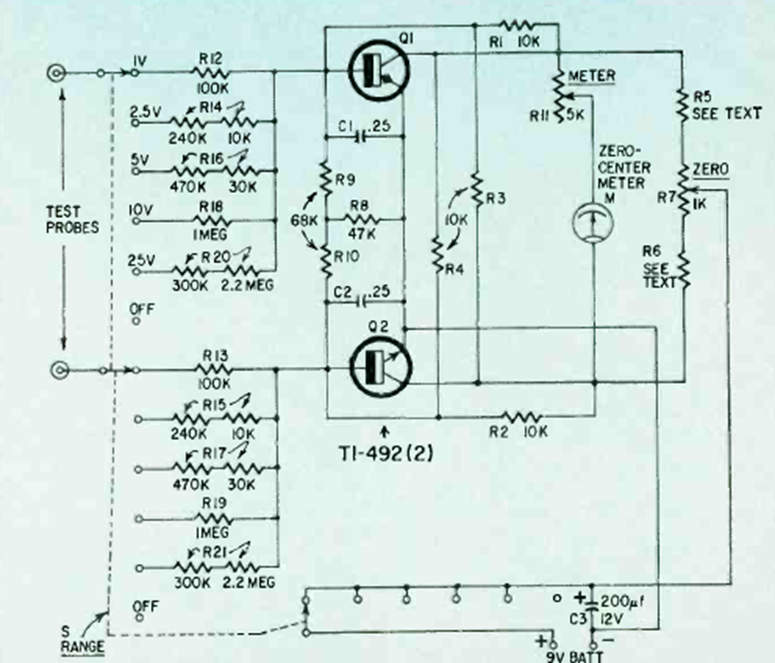

This sensitive two-transistor circuit was found in the June 1965 Radio Electronics magazine. The circuit has low drift and uses an analog instrument. The input resistance is high.
