Remote control receiver (CB22548E)

Details
Written by: Newton C. Braga

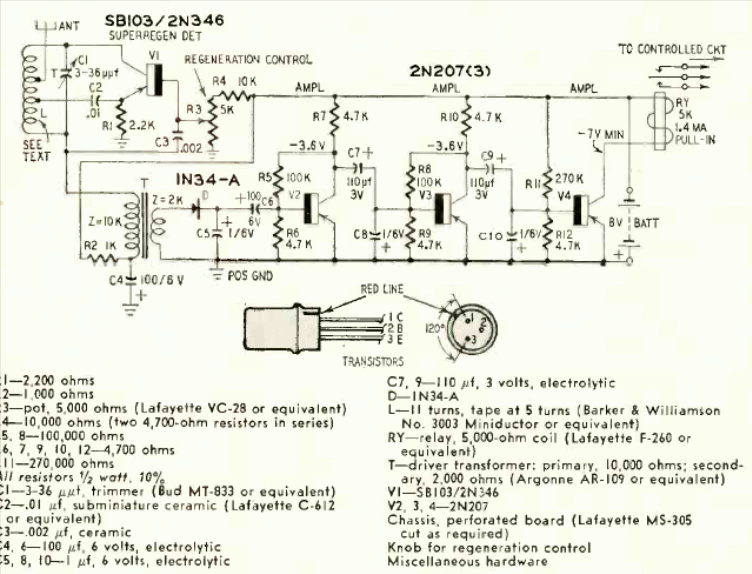

This transistorized circuit appeared in a Radio Electronics magazine in March 1958. The frequency range depends on the tuned circuit, being within a few megahertz.




| Clique na imagem para ampliar |
