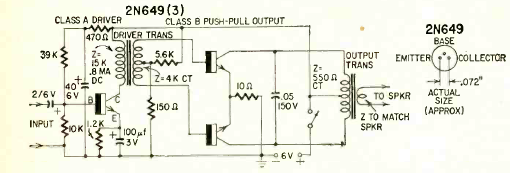

Amplifier stage 2N649 (CB23623E)

Details
Written by: Newton C. Braga



This circuit is from a Radio Electronics documentation from July 1959. In this documentation the new transistor was announced. The circuit power was 100 mW with 18 V supply.
