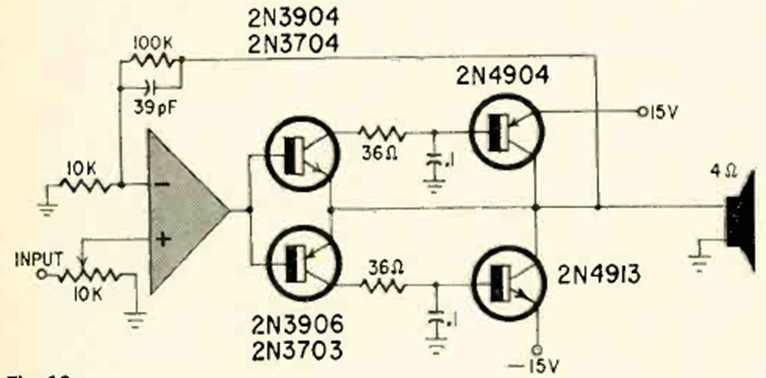

Operational power amplifier (CB23901E)

Details
Written by: Newton C. Braga



This circuit is from an article about operations in a Radio Electronics magazine from around 1968. The transistors are types of the time and the power is not the greatest.
