Micro amplifier (CB23672E)

Details
Written by: Newton C. Braga

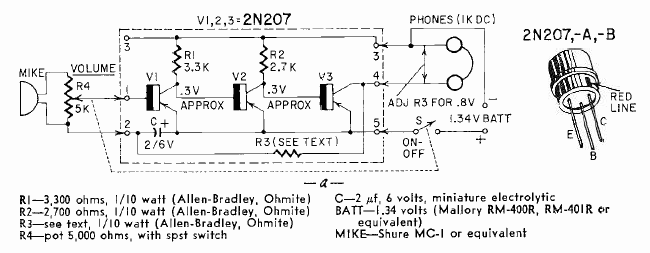

This three-transistor circuit was found in Radio Electronics magazine from May 1969. The circuit is for hearing aids and has earphone listening.
