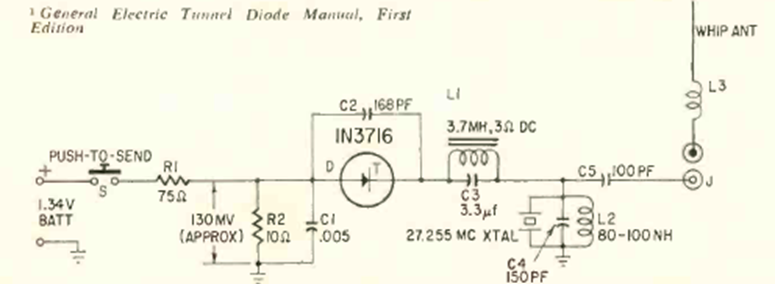

Transmitter with tunnel diode (CB23519E)

Details
Written by: Newton C. Braga



We found this circuit in a 1963 Radio Electronics. It can be used for remote control. The frequency depends on the coil and the power is supplied by a single battery.
