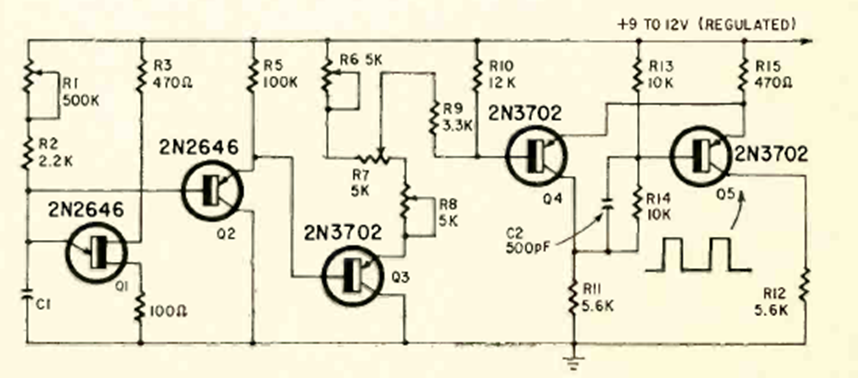

Using the well-known 2N2646 that was popular at the time, this circuit was found in Radio Electronics magazine from July 1968. The circuit is adjusted in R1 and R6 and the frequency basically depends on C1.
| Clique na imagem para ampliar |
Variable space mark generator 2N2646 (CB23924E)
