2-Transistor Amplifier (CB22508S)

Details
Written by: Newton C. Braga

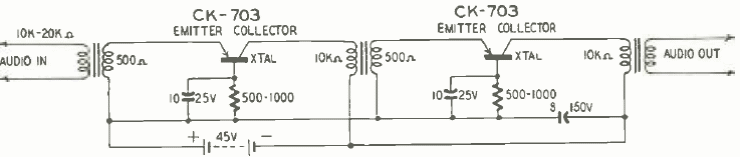

This 1950's circuit used one of the first commercial transistors and had two stages for audio signals. The circuit had good gain for the time, already showing the future possibilities of transistors.
