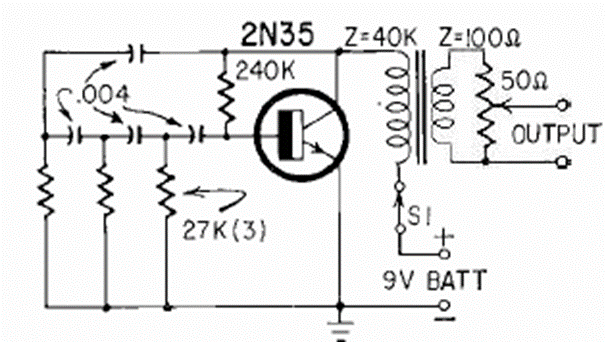

This circuit is from a Radio Electronics from August 1964. The transistor is from the time, but the circuit can be created with modern equivalent transistors. The transformer is the driver type from old transistor radios.
Signal injector (CB23586E)
