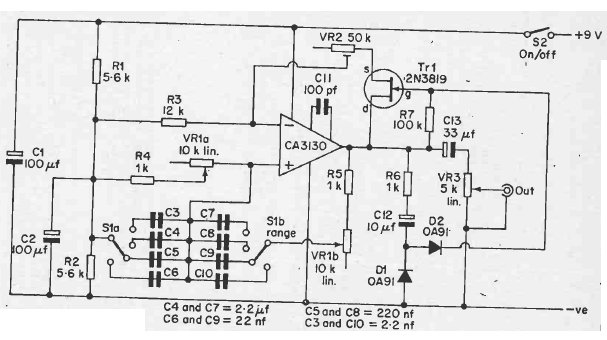

This interesting op-amp signal generator circuit was found in a 1977 documentation. The circuit has an automatic gain control generating signals from a few hertz to several tens of kilohertz.
Sinusoidal generator CA3130 (CB21988E)
- Details
- Written by: Newton C. Braga
